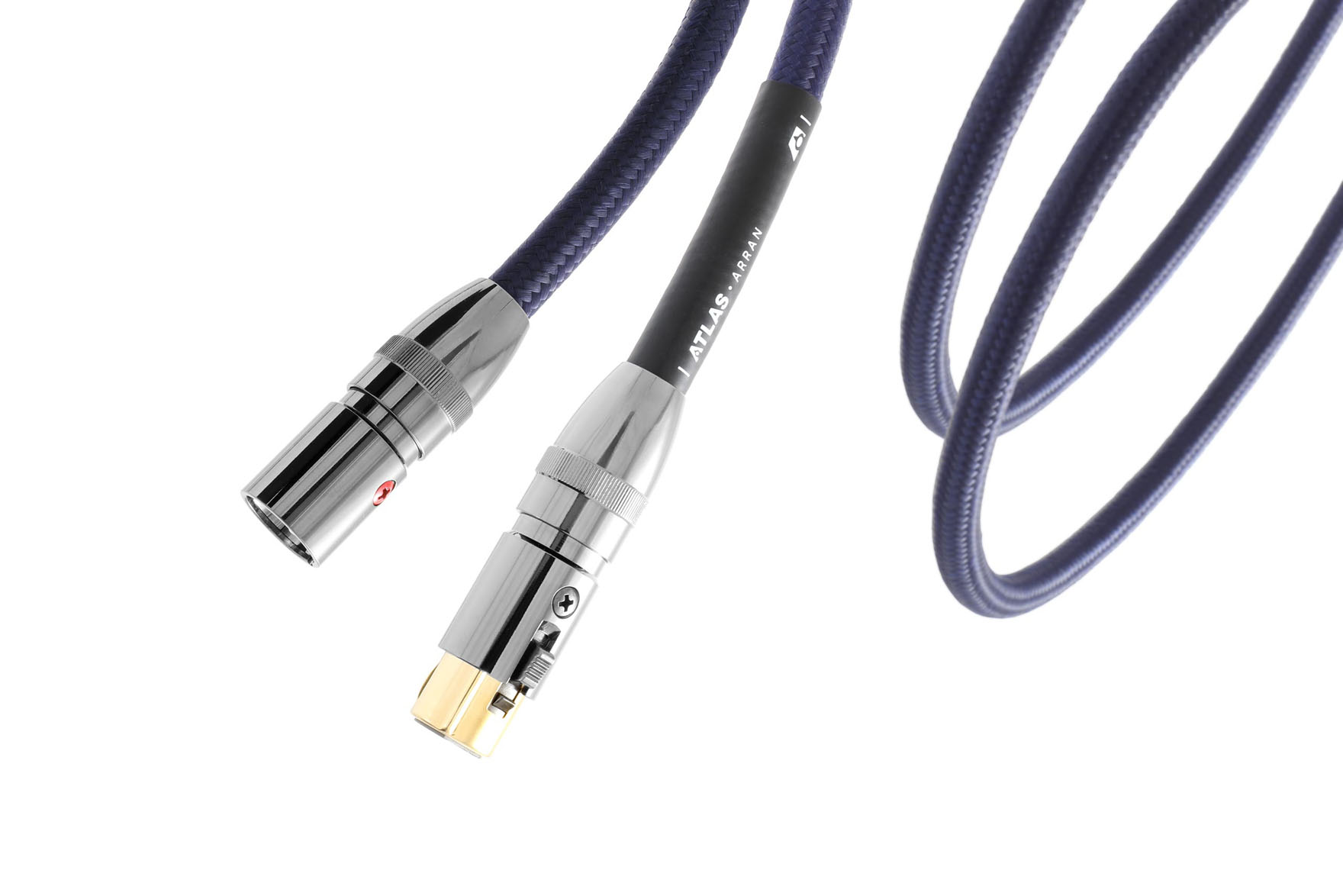

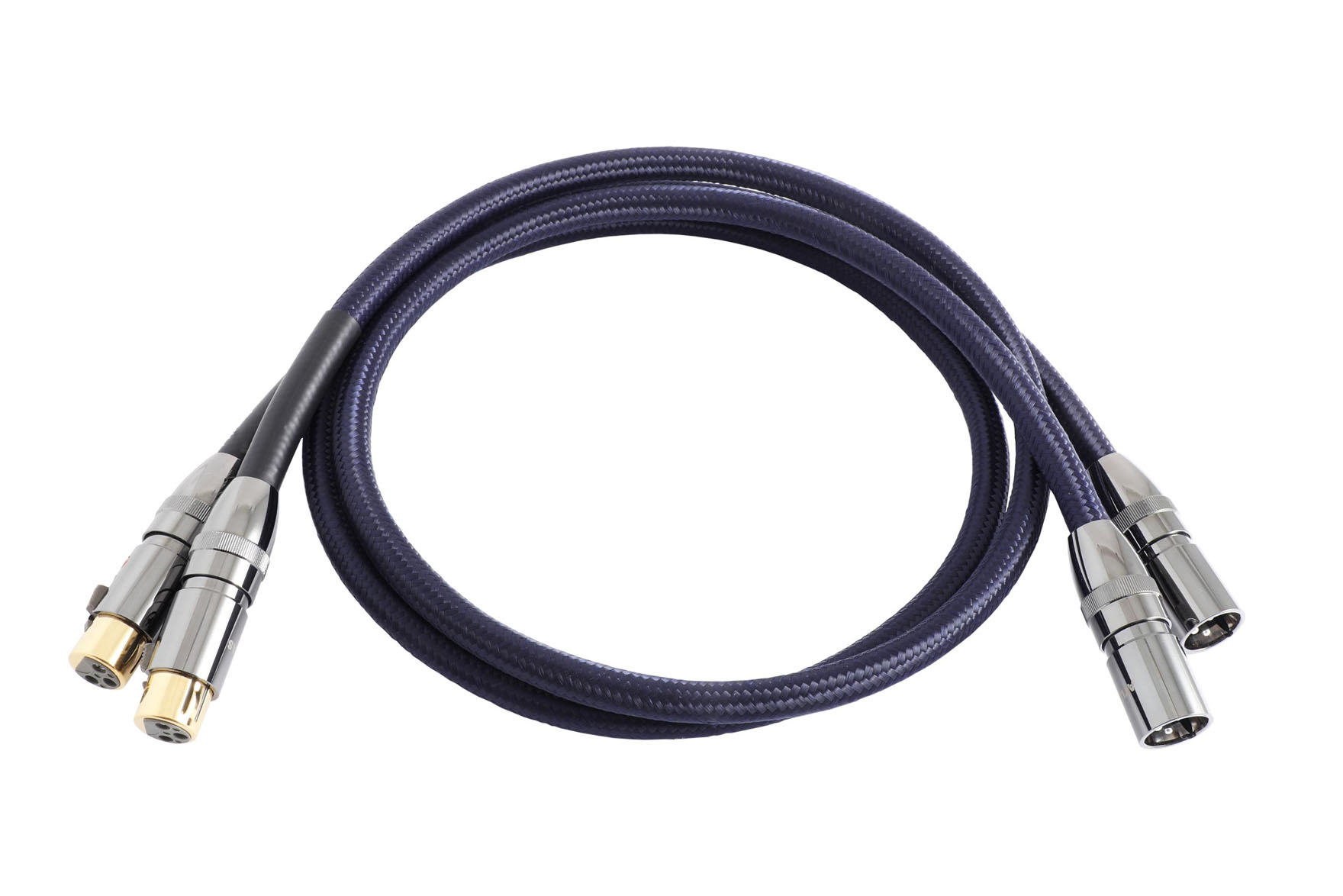

ATLAS Arran OCC XLR 0,75m

Brand

ATLAS Atlas
SKU
HA-AArranXLR75
2.700,00 €

Το Arran OCC XLR είναι ένα υψηλής ανάλυσης χάλκινο καλώδιο διασύνδεσης OCC που βασίζεται σε ιδέες που αρχικά αναπτύχθηκαν για τις αναγνωρισμένες σειρές Mavros & Asimi.

Calculating...

Οι τιμές των δόσεων είναι ενδεικτικές! Οι πραγματικές θα εμφανιστούν κατά την πληρωμή με πιστωτική κάρτα!.

Το Arran OCC XLR είναι ένα υψηλής ανάλυσης χάλκινο καλώδιο διασύνδεσης OCC που βασίζεται σε ιδέες που αρχικά αναπτύχθηκαν για τις αναγνωρισμένες σειρές Mavros & Asimi.

A technically and sonically superior wide-bandwidth interconnect designed to maximise the performance of the very finest audio systems which offer the increasingly popular option of XLR connection. Arran OCC XLR incorporates our precision dd (dual-drain) system.

The Arran OCC XLR features the highest quality ‘6N’ (99.99997% purity) elongated crystal copper manufactured using the OCC (Ohno Continuous Casting) process.

The cable utilises a pair of conductors, each made up of six solid OCC strands surrounding a seventh central wire, tension wrapped in a multi-layer microporous Teflon dielectric. A sophisticated ‘dd’ (dual-drain) screen configuration with a copper shielding braid ensures minimal RF interference and noise susceptibility.

Termination is with our cold-weld aluminium alloy ‘dark Chrome’ XLR connectors, here with silver-plated OCC copper pins. In a cold-weld (solder-free) connection, the metal of the connector plug and the wire are squeezed together under a calibrated pressure to form a robust, consistent, air-tight metal to metal contact with no deformation of the cable dielectric. The result is a smooth, uninterrupted signal path which behaves as one continuous entity.

Standard or Luxe finish options are available.

Technology & Specifications

Construction Twin Multi-core dd (dual drain)
Material OCC Copper
Dielectric Microporous PTFE
Screen Braid + Mylar™, 100%
Capacitance 71.17 pF/m
Inductance 0.332 µH/m
Resistance 0.0197 Ohm/m
Outside Diameter 9.8 mm
