ATLAS Hyper Achromatic BiWire speaker Z 4:4 5m

Brand

ATLAS Atlas
SKU
ATLAS Hyper Achromatic BiWire speaker Z 4:4 5m
900,00 €

Καλώδια ηχείων κατάλληλα για διπλοκαλωδίωση / διπλοενίσχυση

Calculating...

Οι τιμές των δόσεων είναι ενδεικτικές! Οι πραγματικές θα εμφανιστούν κατά την πληρωμή με πιστωτική κάρτα!.

Καλώδια ηχείων κατάλληλα για διπλοκαλωδίωση / διπλοενίσχυση



Hyper Achromatic Speaker Z/S Bi-wire

The bi-wire variation of our Hyper cable family. Bi-wire cables can offer performance benefits when the two halves of the loudspeaker's crossover are electrically ‘separated’ to allow bi-wiring) (and bi-amping, if so desired). Available in 2–4 and 4–4 connector configurations.

bi-wire configuration options

A sophisticated bi-wire cable engineered to offer a high level of transparency and wide dynamic range.

The cable employs conductors comprising 72 0.25mm² high-purity OFC (Oxygen Free Copper) strands encapsulated within a carefully selected high-efficiency PTFE (Teflon™) dielectric coating. The resultant conductor is embedded within an anti-vibration filler and finished in the Hyper gloss black sleeve.

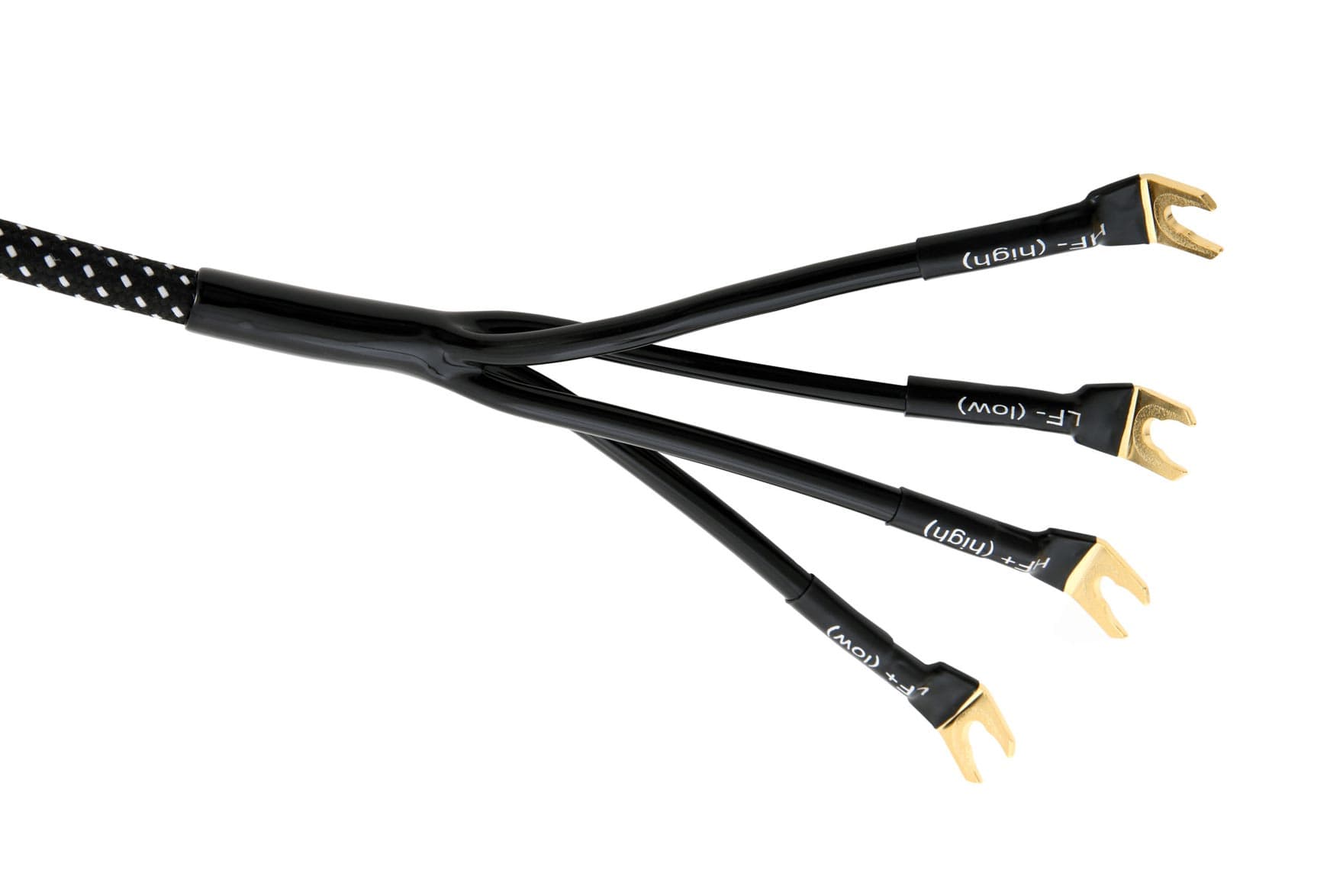

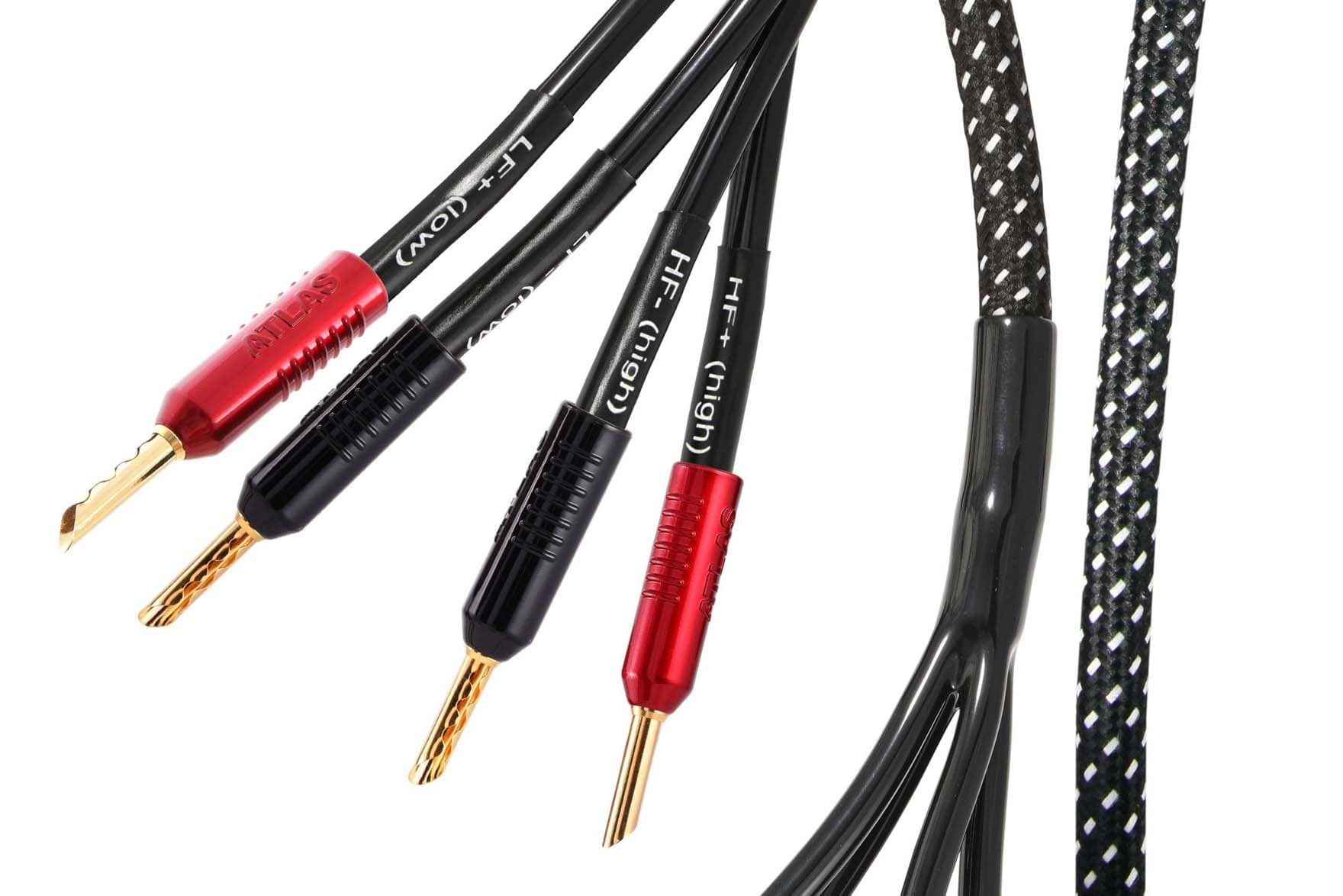

Our latest-generation Achromatic Z-plug is a proprietary low-mass, self-cleaning, precision-crimped (cold-weld) speaker connector fitted as standard. These cables are also available terminated with our cold-weld high quality OFC spades or our Transpose Modular Termination System. Transpose options include Z-plugs, expanding 4mm plugs or OFC spades in gold or silver.

Technology & Specifications

Construction Concentric multicore LF/MF, Solid core HF (1.2mm)
Material 6n OFC
Dielectric PTFE (Teflon™)
Screen none
Capacitance 163.98 pF/m
Inductance 0.2303 µH/m
Resistance 0.0060 Ohms/m
VOP 0.69
Outside Diameter 8.5mm
