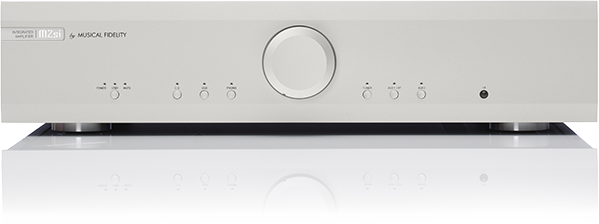

M2si - Specifications

Output

• Power 72 Watts per channel into 8 Ohms (18dBW)
• Voltage 22 Volts RMS, 20Hz to 20 kHz; onset of clipping
• 62 Volts peak to peak
• Current 25 Amps peak to peak
• Damping factor 36
• Output devices 1 pair per channel

Line input

• THD+N < 0.014 % typical, 20Hz to 20 kHz
• Signal / noise ratio > 96dB ‘A’-weighted
• Input impedance 40 k Ohms
• Frequency response +0, –0.1dB, 10Hz to 20 kHz

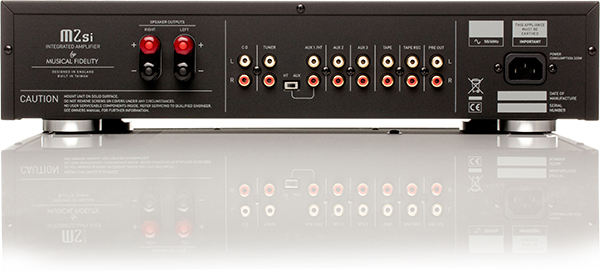

Connections

• Line level inputs 6 pairs line level RCA connectors
• Line level outputs 1 pair line level RCA connectors, constant level TAPE outputs
• 1 pair line level RCA connectors, preamp outputs for e.g. bi-amping
• Speaker outputs 2 pairs 4mm banana plug/binding posts

Power requirement

• Mains voltages 115/230VAC 50/60Hz (factory pre-set)
• 100VAC 50/60Hz (alternative)
• Consumption 320 Watts maximum

Weight

• Unit only, unboxed 9.2 kg (20¼ lbs)
• In shipping carton 13 kg (30⅔ lbs)

Dimensions

• Wide 440 mm (17⅓”)
• High, including feet 100 mm (4”)
• Deep (front to back) including terminals 400 mm (15¾”)
